AeroCut X Slitter-Cutter-Creaser

GM-MBM-AEROCUTX

Ea. (1)

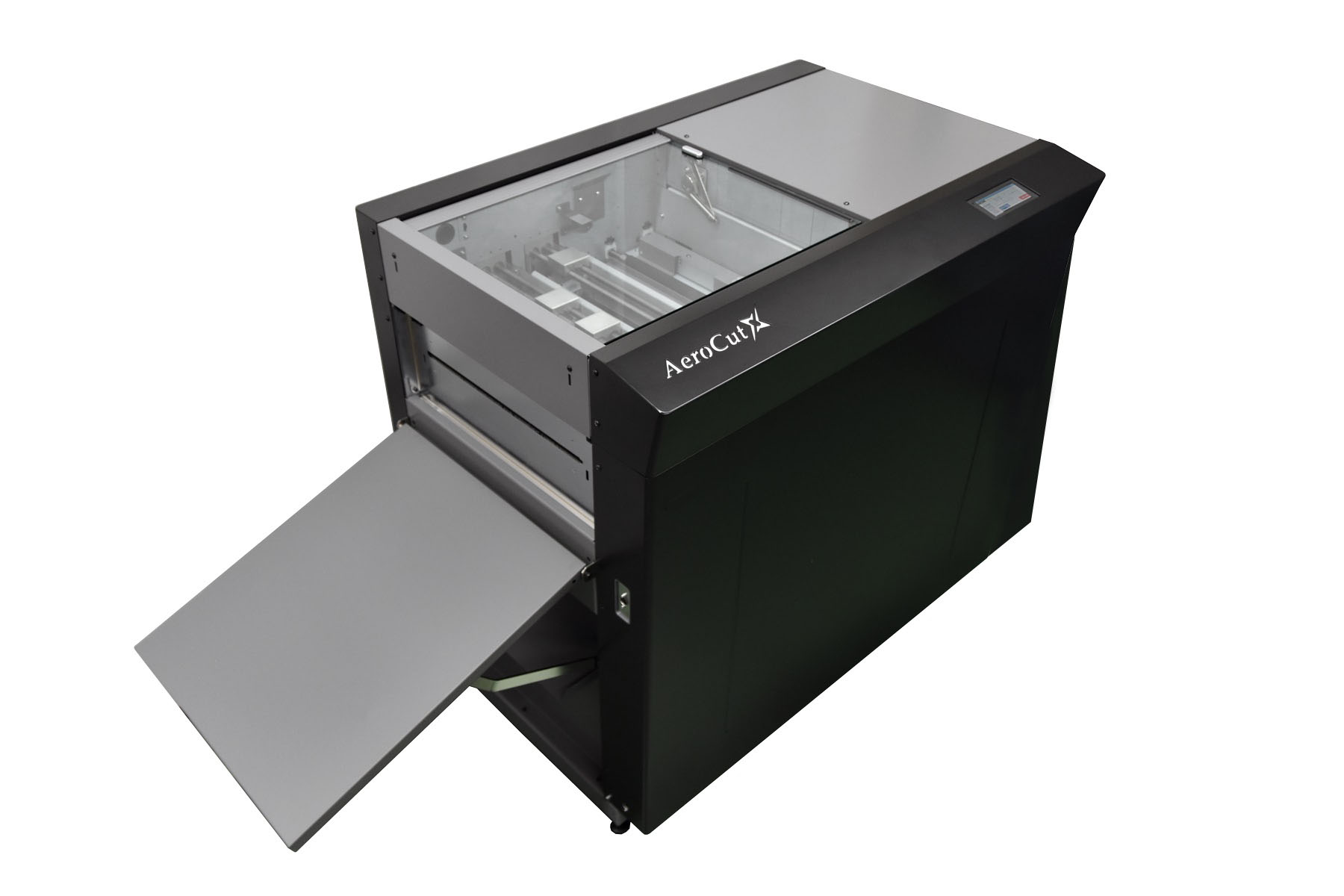

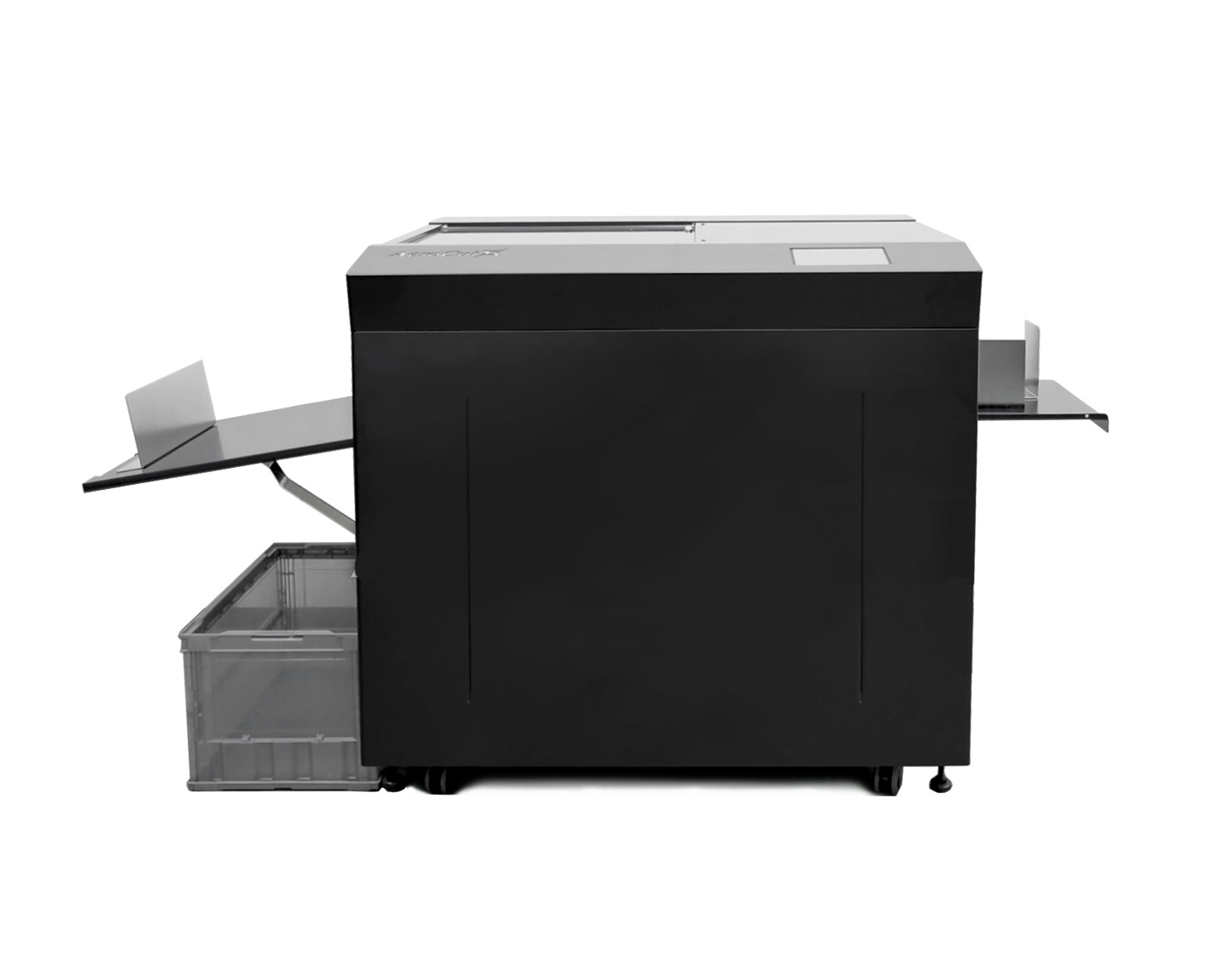

The Aerocut X is the basic slitter/cutter/creaser. This is the refined model of the original AeroCut launched in 2010, featuring enhanced productivity and user-friendliness.

• Intuitive operation with 7" touch screen
• Flex mode allows for multiple size cards from one page
• Tri-suction feeding mechanism
• Robust slitters and guillotine to cut 400gsm stock
• Lytrod Intellicut software included
POA

Description

Description

Extremely stable feeding

  • Feeding is important and essential part for any print finishing device. The Aerocut X has an innovative patented feeding mechanism, that drastically reduces risks of double feeds and mis-feeds. This results in much greater  productivity.

Laser sharp accuracy

  • The AeroCut X is designed, built and calibrated with Japanese engineering and craftsmanship at its best. The robust full-metal machine body keeps top level of accuracy and finishing quality every time.

True creaser adds value on digital prints

  • AeroCut X is an ideal solution for finishing especially short-run digitaly printed applications, such as business cards, post cards, invitations, greeting cards, leaflets, tickets and more. The AeroCut X saves time and cost for any print stop, in-house printers and commercial printers.

FEATURES

  • Intuitive operation: 7" build-in touch screen.
  • Flex Mode: Allows operator to cut multiple size cards from a page and add desired nmber of creases. Easily creates new applications.
  • Patented feeding mechanism: "Tri-suction feeding mechanism" reduces risks of double feeds and mis-feeds, thereby preventing paper jam inside and enhancing actual output.
  • Robust slitters and guillotine: Self-sharpening slitters and guillotine unit allows the machine to cut 400gsm.
  • Instant job change: AeroCut X can change jobs instantly, making it the ideal solution for finishing digital applications.
  • Maintanence is easy: With detachable rollers, it gives easy access to components.



Specifications

Specifications

FUNCTIONS
  • Slit, cross cut, crease,
  • *perforate, score, slit-score (optional)
FEEDABLE PAPER SIZE
  • 210 (W) X 210 (L) - 370 (W) x 750 (L) mm
  • Up to 1,600mm with support
MINIMUM FINISHED SIZE 55 (W) x 45 (L) mm
PAPER WEIGHT 120 -400gsm
OPERATION 7" touch screen
JOB MEMORIES 266 pre-set jobs, 100 + 50 customized job memories
FEEDING MECHANISM
  • Upper belt tri-suction feed
  • Side blow
  • Skew adjustment
  • Side aligner
  • Ultra sonic double feed detection
  • Cut mark registration
  • Feed tray stacking capacity 100mm
SPEED (SHEETS/MIN)
  • 8.6x 21 up business cards
  • 13.3x 8 up A6 post cards
  • 14.4x 4up A5 greeting cards
  • 20x A3 leaflet + center crease
DIMENSIONS 1,062 (W) x 763 (D) x 1,076 (H)mm
FOOTPRINT 1,903 (W) x 763 (D) mm
NET WEIGHT 270kg
POWER SUPPLY 100-120V or 200-240VAC, 50/60Hz single phase, 400W
