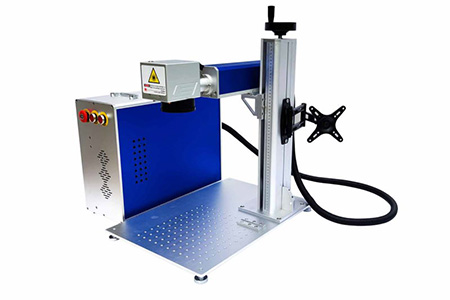

Eagle FiberMark F2 Laser Marking Machine

GM-EAG-FMF2

Ea. (1)


The F2 offers a low-cost, high-quality solution for businesses transitioning from more traditional means of engraving, etching, and surface marking all types of metal, stone, and tile. Commonly used by custom awards and serialized part manufacturers alike, the open working area design and lightning-quick galvo system offers a cost-effective and highly efficient solution to all your etching and engraving needs.

• Focusable red dot indicators
• Adjustable marking area
• Visible red dot laser tracing
POA

Specifications

Specifications

Working Area*: Standard 4.3″ x 4.3″ (110 x 110mm), optional 7″ x 7″ (175 x 175mm).
Working Table: Aluminum plate table with an array of threaded holes for aligning or fixing work pieces.
Laser Source: Fiber Laser
Laser Power*: 30W / 50W
Software: EzCAD CAD/CAM, compatible with Windows 7/8/10.
Machine/PC Connection: No computer included. Connected by USB.
Control Interface: Direct control in software.
Motion System: Fast galvo motion system.

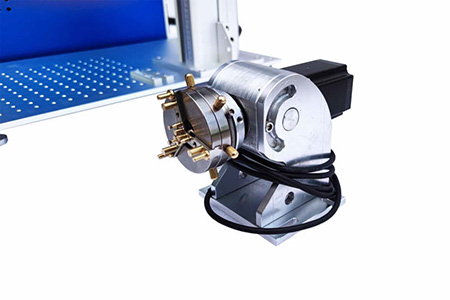

Accessories*: Optional rotary.
Electrical Requirement: 220V/50Hz, single phase, up to 0.3kW.
Size: 34″ x 21″ x 28″ (860 x 530 x 710mm)
Net Weight: 110lb (50Kg)
