Foliant Vega 400A Laminator

GM-MSC-FOLVEG400A

Ea. (1)

The FOLIANT Vega 400 A is a very compact industrial laminating machine designed for heavy-duty lamination of digitally printed material. It is equipped with an integrated deep pile vacuum feeder, high-speed bump separator, non-sticky pressure roller, in-run adjustable twin de-curl bar and overlap system.

• Maximum speed: 59 feet/min.
• Load capacity: 11"
• Max. sheet size: 14.9" x 25.9"
• Warm up time: 8 mins.
POA

Description

Description

Vega 400A

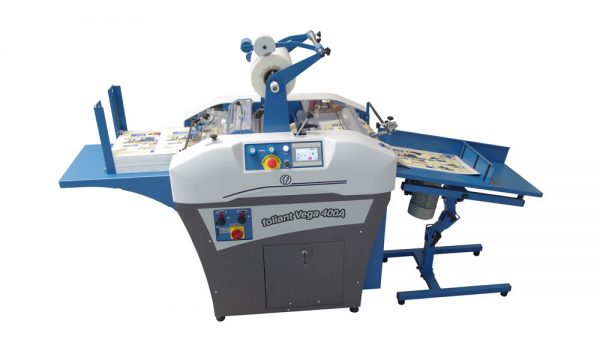

The Foliant Vega 400A Industrial Laminating Machine is a very compact industrial laminating machines, designed for heavy-duty digitally printed material. It is equipped with an integrated deep pile vacuum feeder, high-speed bump separator, non-sticky pressure roller and in-run adjustable twin de-curl bar and overlap system. Due to its pneumatic high-pressure system, format and performance the machine is suitable for all jobs – all kinds of digital printed sheets and high volumes of offset printed sheets 13.9″ x 19.7″ for lamination. The machine’s maximum speed is up to 59 feet/minute, while performance is over 2,100 sheets per hour of 14″ x 20″ portrait (white paper 200 gsm).

  • Easy operation
  • Equipped with a rising pile front separation stream feeder with a vacuum belt head
  • Single-sided thermal industrial laminator

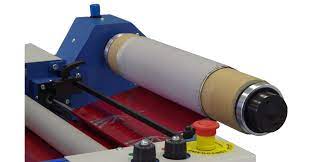

  • Film is mounted on a quick change shaft with a film tension control breaker
  • Film holder unit is equipped with a trim slitter and perforation wheel
  • Does not need external source for pressured air
  • Pressure is pneumatically adjustable
  • De-curl blade for offset printed sheets
  • De-curl roller for digitally printed sheets
  • Icon based touchscreen control system for easy automation
  • Integrated bump sheet separator
  • Optional Reception Unit 400*, Jogger 400*, Foliant Foiler, pneumatic separation, air shaft and extra film supply roll shaft available
    *Important – The machine must be operated with either a Reception Unit or a Jogger.



Specifications

Specifications

Maximum Speed: 59 feet/minute
Feeding: Automatic
Feeding System: Vacuum Belt
Feeder Load Capacity: 11 ” (28 cm)
Overlap Control: In-run Adjustable
Overlap Accuracy: ± 0.08″
Separation: Automatic
Paper Weight: 115 – 350 gsm
Main Rollers Pressure: Pneumatic

Minimum Sheet Size: 7.8″ W x 11.8” L (20 cm x 30 cm)
Maximum Sheet Size: 14.9” W x 25.9″ L (38 cm x 66 cm)
Maximum Performance: 2,100 14″ x 20″ SPH
Warm Up Time: 8 minutes
Reception Unit:   Standard
Jogger: Optional
Non-sticky Pressure Roller: Optional
Foliant Foiler: Optional
