Horizon RD 4055

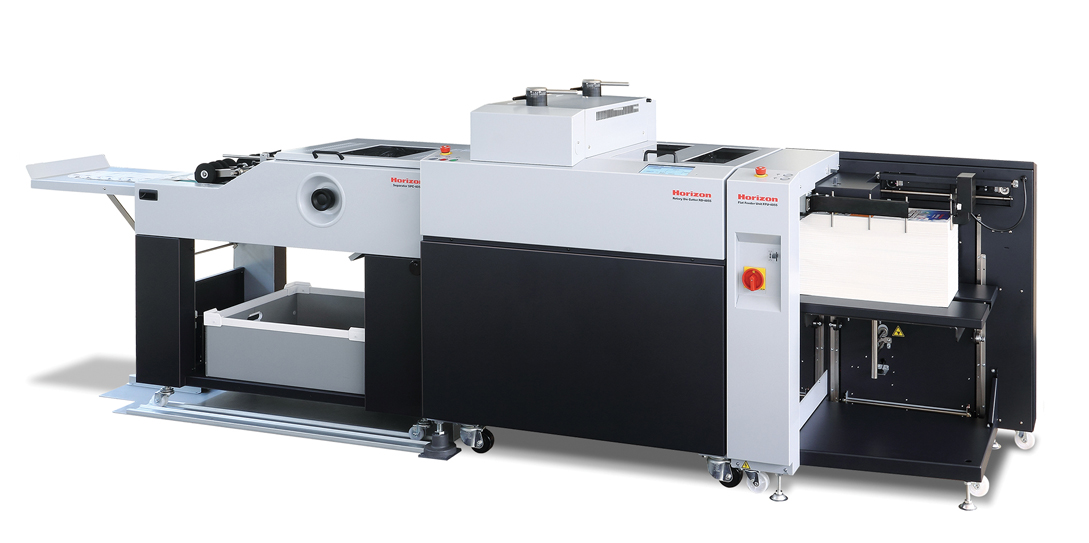

The Horizon RD-4055 Rotary Die Cutter is designed to meet the growing demand for short-run die-cut production.  Die-cut, crease, perforate, slit, hole-punch, and round corner in a single process for digital and offset printed sheets.

BENEFITS

• Space Savings: Rotary die cutter designed to emet the gorwing demand for short run product. The rotary die-cutters are of rugged construction, yet compact compared to the normal die cutters.
• Applicaton Flexibility: Die-cut and Kiss-cut of various substrates for digital and offset printed sheets.
• Labor Savings: Feeding, die cutting, and separating are achieved in one pass.
• Reducted Die Cost: Uniquely designed servo motor controlled “Repeat Register” feature allows multiple-up applications from a single-up die to minimize die cost.
• Simple and Easy Operation: Reduces costly labor steps and increases productivity with easy setup and operation versus steel rule or mechanical dies.

OPTIONAL ADD-ONS:

• ST-4055 Stacker
  • ​ST-4055 stacks a wider range of substrates and applications such as thinner sheets or complicated shapes which can be difficult to separate.

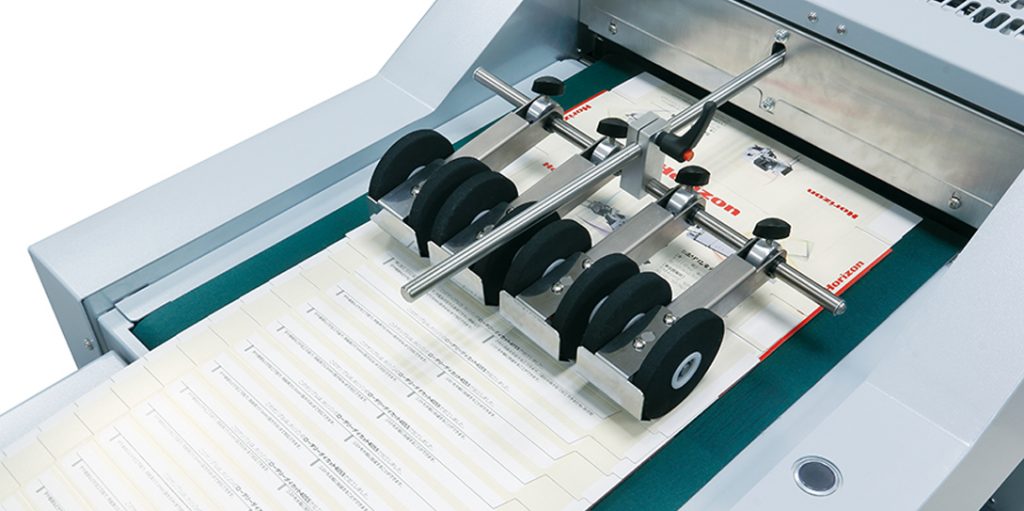

  • Vacuum belt transport ensures smooth delivery without separating die cut pieces.
  • Offset stacking funcion is available by pre-set number.
  • Maximum stack capacity: 6.69"

• BT-4055
  • BT-4055 is bucket receiving tray to deliver none separated die cut sheet in on the receiving tray.

Sheet size, max: 15.74 x 21.65" (400 x 550mm)
Sheet size, min: 7.875 x 10.83" (200 x 275mm)
Cut size, max: 14.803 x 20.866" (376 x 530mm)
Cut size, min: Depending on die shape
Sheet thickness: 127.9 to 400 gsm
Die cutting thickness: 0.019" (0.5mm)
Creasing thickness: 0.011" (0.3mm)
Die size, max: 15.748 x 22.047" (400 x 560mm)
Die size, min: 6.3 x 3.937" (160 x 100mm)
Upper cutting blade height: 0.0315" (0.8mm)
Lower / 2nd cylinder: Solid anvil
Feeder stack height: 19.68" (500mm)
Feeder: Vacuum belt w/registration
Double sheet detection: Ultrasonic and mechanical
Production speed: 6,000 cycles per hour
Electrical: AC 200-240V, 1PH, (40A service)
Air source: Reference tech docs & literature
Dimensions (Wx Dx H): Reference tech docs & literature
