Horizon RD 4055DMC Rotary Cutter w/Dual Magnetic Cyl

GM-HOR-RD4055DMC

Ea. (1)

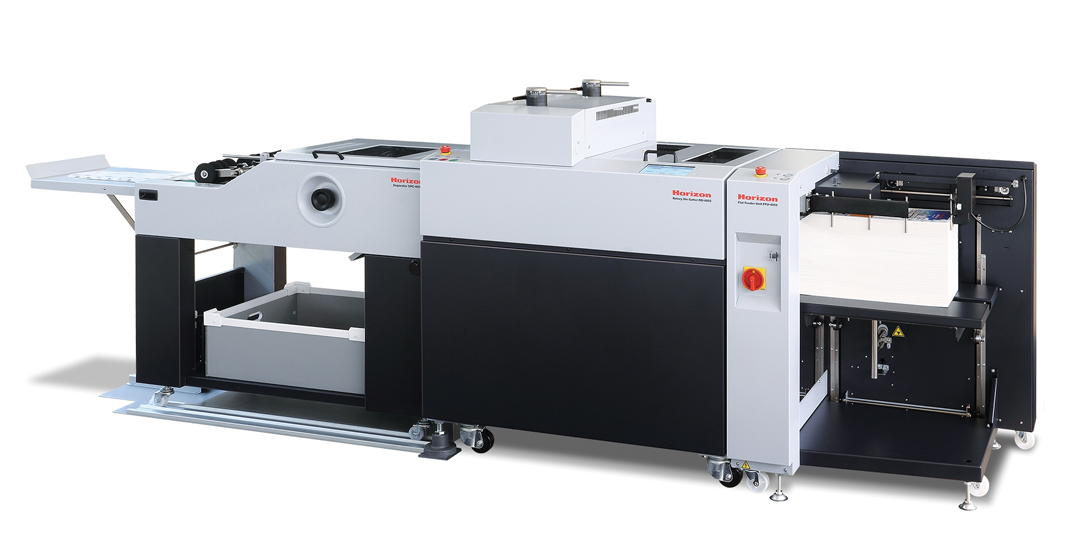

The Horizon RD-4055DM Rotary Die Cutter with dual magnetic cylinders is designed to simultaneously die-cut and crease/ score short-run product from both sides of the sheet.

• Size:7.875” x 10.830” – 15.740” x 21.650”
• Feeder Stacker Height: 19.68”
• Speed: 6,000 cycles/hr
• Thickness: 127.9 to 400gsm
POA

Description

Description

The Horizon RD-4055DM Rotary Die Cutter with dual magnetic cylinders is designed to simultaneously die-cut and crease/ score short-run product from both sides of the sheet. It can also perforate, slit, hole punch and round corner in one process for digital and offset printed sheets. This system features easy change-over and simple operation. A “Repeat Register” function allows multiple-up applications from a single-up die to minimize costs. Handles complex creasing patterns and light packaging applications with ease.





Specifications

Specifications

Sheet size, max: 15.74 x 21.65" (400 x 550mm)
Sheet size, min: 7.875 x 10.83" (200 x 275mm)
Cut size, max: 14.803 x 20.866" (376 x 530mm)
Cut size, min: Depending on die shape
Sheet thickness: 127.9 to 400 gsm
Die cutting thickness: 0.019" (0.5mm)
Creasing thickness: 0.011" (0.3mm)
Die size, max: 15.748 x 22.047" (400 x 560mm)
Die size, min: 6.3 x 3.937" (160 x 100mm)
Upper cutting blade height: 0.0315" (0.8mm)

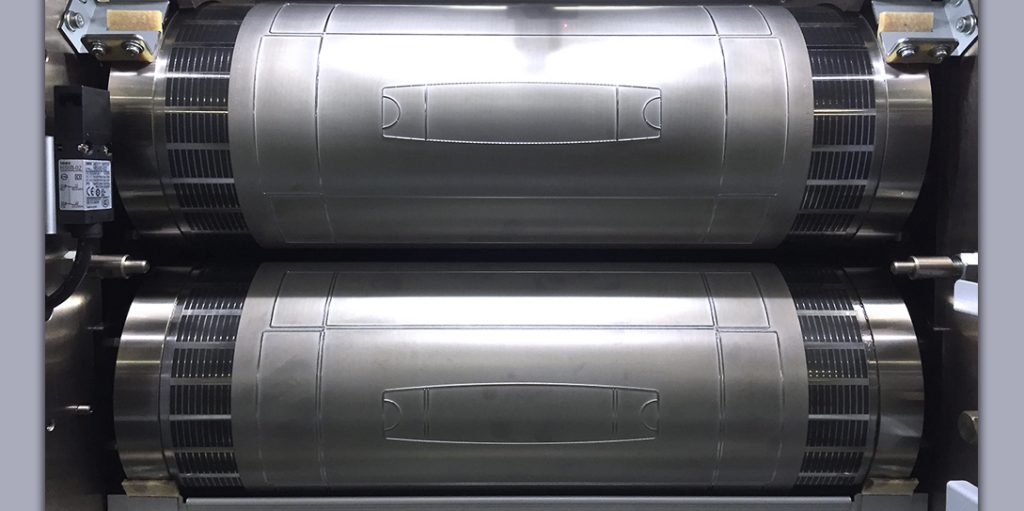

Lower / 2nd cylinder: Magnetic cylinder for lower / 2nd die
Feeder stack height: 19.68" (500mm)
Feeder: Vacuum belt w/registration
Double sheet detection: Ultrasonic and mechanical
Production speed: 6,000 cycles per hour
Electrical: AC 200-240V, 1PH, (40A service)
Air source: Reference tech docs & literature
Dimensions (Wx Dx H): Reference tech docs & literature
