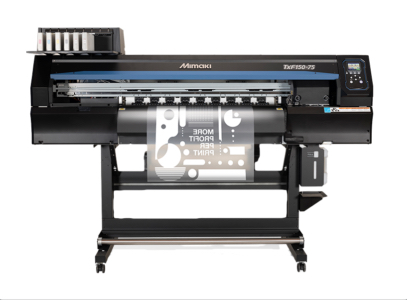

Mimaki TxF150-75 DTF (Direct-To-Film) Printer

PM-MIM-TXF150_75

Item Availability (unit) Ea. (1)

TxF150-75 is a reliable, high-quality printer that incorporates Mimaki's technologies based on the concept of safety and stability. The DTF printer is designed with a focus on stable quality, incorporating functions to prevent ink ejection failure and white ink clogging, which have been major issues for DTF printers.

• Mimaki Circulation Technology (MCTv2)
• Degassed aluminum ink pack prevents nozzle clogging
• Nozzle check unit (NCU) & Nozzle Recovery System (NRS)

POA

Qty:

Description

Equipped with the newest version of Mimaki Circulation Technology (MCTv2) that prevents white ink sedimentation by constantly circulating the ink
Degassed aluminum ink pack prevents nozzle clogging by reducing oxygen and other gases from mixing with the ink
Nozzle check unit (NCU) & Nozzle Recovery System (NRS) checks for clogged nozzles and automatically performs nozzle cleaning and replacement without interrupting printing.
New pinch roller system for stable media feeding of DTF film
3-way intelligent heater for blur-free image quality
Thermal transfer pigment ink PHT50 is ECO PASSPORT certified ink

Specifications

Printhead	On-demand piezo head
Print Resolutions	720dpi, 1,440dpi
Print Speed (4 Color)	up to 35.5² ft/hr (3.3m²/hr)
Maximum Print Width	31.5" (800mm)
Maximum Media width	28.7″ (730 mm)
Maximum Media Thickness	Up to 0.04" (1mm)
Maximum Media Weight	Up to 99.2 lbs. (45.0 kg)
Ink Type	Heat transfer pigment ink PHT50 (C,M,Y,K,W)
Interface	Ethernet 1000BASE-T / USB2.0
Power Supply	Main unit: Single phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power Consumption	100V system: 1.44kW, 200V system: 1.92kW
Operational Environment	Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H)	77.4″ x 27.6″ x 54.8″ (1,965mm x 700mm x 1,392mm)
Weight	277.8 lbs. (126 kg)
Certifications	VCCI class A, FCC class A, ETL UL 62368-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC
