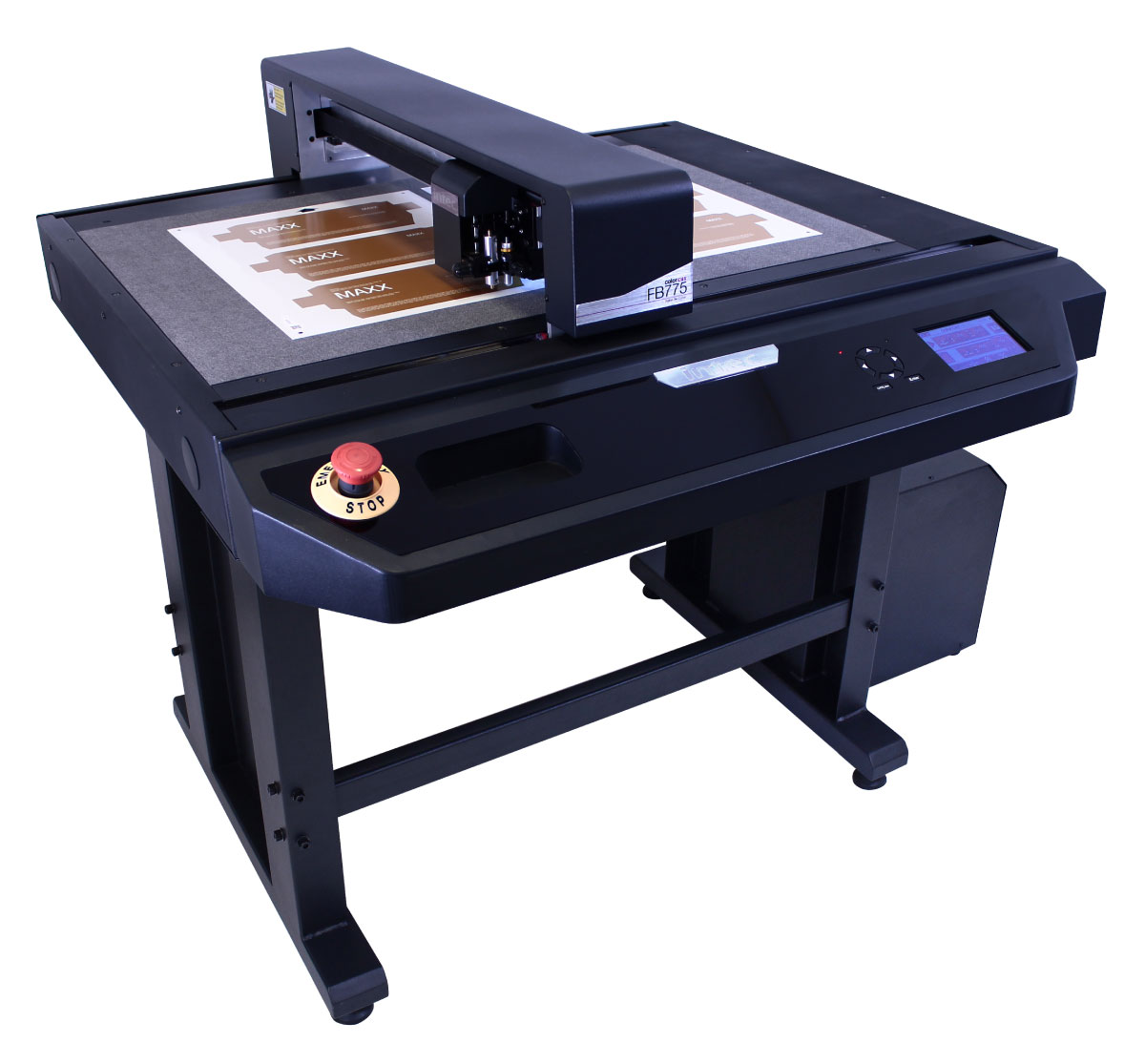

Morgana ColorCut FB775 B2+ Digital die cutter
The Morgana ColorCut FB775 digital die flatbed cutter is our mid range model. Incorporating a B2+ cutting table for large format sheet cutting, a QR code job retrieval and registration scanning system, which opens the associated cut file, and ensures your packaging, POS or labelling job is cut with outstanding speed and accuracy by the advanced, high-speed, servo motors that enable consistent and productive cutting. The enhanced dual-tool cutting head delivers up to 1,500gf pressure for creasing and 1,200gf for cutting – and cuts through paper/card up to 1,000micron, opening up new possibilities with its ground breaking design.
The Morgana ColorCut FB775 B2+ Digital Die Cutter joining the highly successful digital die flatbed range.
The Morgana ColorCut FB775 is manufactured with premium components for high quality, reliability and class leading performance, reinforced with the aesthetic styling of the sweeping control panel dashboard, which includes a state-of-the-art 5″ immersive touch panel control.
Morgana understands, ‘Time is Money’, so productivity was a core theme running through the design, therefore while the large B2+ cutting table is perfect for larger format work, we wanted users to be able to place multiple jobs on the table and let the cutter do the work for them. So, the sophisticated ColorCut Pro software (included) with the FB775 features a truly innovative ‘Productivity Mode’ enabling N-up sheets – even when mixed jobs are placed on the table – in this mode the FB775 will cut the first sheet, auto find and locate the next sheet, identify the cutting file required (if it is different), cut & crease and then move on to the next sheet.
This is the perfect partner for your business to deliver truly professional digital cutting, creasing and perforation, of any shape, on a range of materials up to 1,000 micron.
Intelligent job handling with the Morgana ColorCut FB775 B2+ Digital Die Cutter
The Morgana ColorCut FB775 digital cutter is an ideal mid-size cutter with greater productivity. Featuring the Vision3 CCD camera that reads QR codes printed on the job, instantly retrieving cut files for every job, and also reads SmartMarks to ensure accurate registration to your printed sheets. Other benefits include a live view of the cutting heads progress, within the ColorCut Pro Production Studio user interface.
Supporting larger than B2 sheets, the cutting table can be maximised to accommodate multiple SRA3 and SRA4 sheets for continuous production, when using ‘Productivity Mode’ – where even mixed jobs can be read and cut in seamless perfection.
The range also includes the FB575, FB750 and FB1175. See an overview of the Flatbed Range page here.
- B2+ table takes SRA2 – or 2 x SRA3 and smaller
- No dies required – cut and crease any shape on demand
- Dual-tool head for same time cutting (1.2kgf) and creasing (1.5kgf)
- Blistering performance of up to 1,200mm/second
- Unparalleled accuracy using latest servo technology
- Cuts mixed jobs on table using QR coded auto job recognition to automatically retrieve associated cut files
- Cuts through up to 1,000 micron/800gsm paper/card, softboards and films to any shape
- Kiss-cuts perfect sheet labels of any shape
- CCD Video Camera driven to accurately follow vector cut/crease lines drawn in Adobe® Illustrator® & CorelDRAW®
- Vacuum suction media hold down table for even the smallest of items
- Effective cutting area 490 x 735mm
- Cut mixed job sheets for increased productivity on the bed, at the same time!
- Complete with dedicated ColorCut Pro cutting & creasing software, with Adobe® Illustrator® or CorelDRAW® plugins
