Summa F1612 F Series 63" Flatbed Cutter

GM-SUM-F1612

Ea. (1)

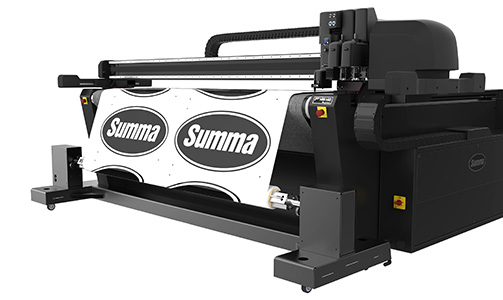

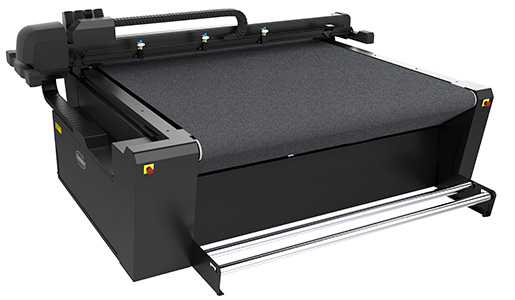

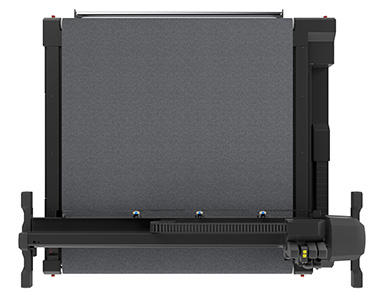

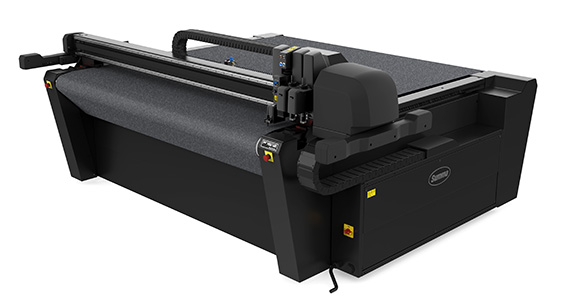

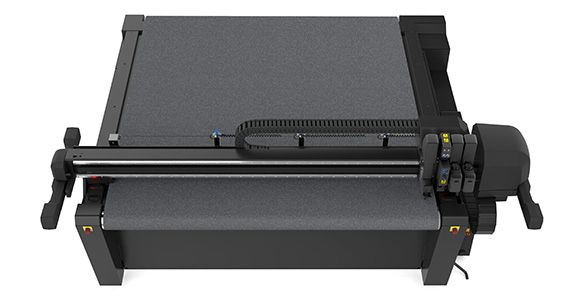

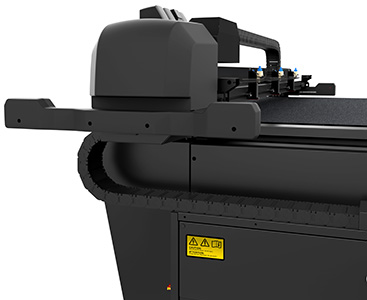

The F1612 is Summa's smallest F Series flatbed cutter, fitting effortlessly into many production areas. It represents the ideal cutting solutions for sign makers who want to automate their cutting workflow or extend their cutting applications.

• Small footprint
• Straightforward installation
• Modular tooling system
POA

Description

Description

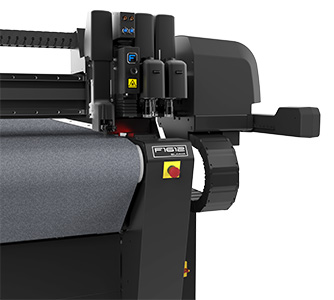

All F Series models can be equipped and retrofitted with various modules and tools. This makes the F Series ideal to grow with your business and open up new markets at any given time.
• High-Frequency Router
• High Torque Rotary module
• Tangential module
• V-Cut tools, Creasing tools, heavy-duty cutout tool, etc.

The flatbed cutter is standard equipped with a range of convenient media handling features. For the F 1 61 2 model special media handling options are available to further enhance the use of this compact flatbed.
Enjoy an automated workflow and ease-of-use:

• Twin Workflow
• Operator Zone
• Poster Trim
• Barcode Workflow
• Basket

Media Handling Add-Ons
• Conveyor extension
• Roll-up system

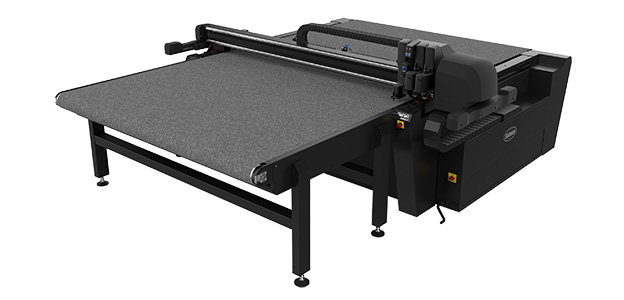

• Extension tables
• Basket

Specifications

Specifications

Model:  F1612

Dimensions:  97 x 86 x 43 in.

Media Width:  Up to 65 in.

Working Area:  63 x 47 in.

Vacuum:  1.3 kW (50Hz) / 1.75

Vacuum Zones:  Variable over width of machine

Requirements:  3 phase 208v + N + G

Speed: up to 39 ips

Acceleration: Up to IG

Standard Solution Includes:

• F Series Flatbed System
• Conveyor System with Pneumatic Media Clamps and Roll Support
• Safety Pack
• Camera System
• Axis Control Software
• Drag Module
• ADC Left & Right
• GoProduce software
