Summa F1832 F Series 72" Flatbed Cutter

GM-SUM-F1832

Ea. (1)

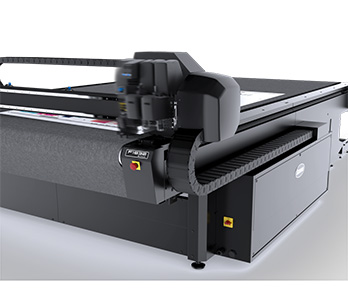

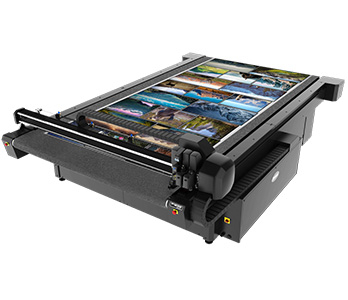

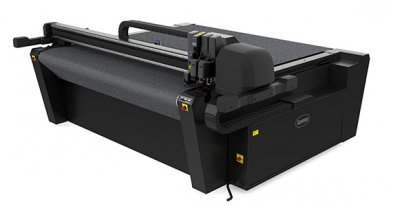

The F1832 F Series flatbed cutter is a perfect match for cutting popular materials, such as 150 cm wide rolls and 152 x 304 cm rigid board materials. Combined with the High Torque rotary tool, the F1832 is ready to conquer also the textile market with the ability to cut the popular textile size of 183 cm.

• Processes popular board and roll material
• Modular tooling system
• Integrated safety system
POA

Description

Description

All F Series models can be equipped and retrofitted with various modules and tools. This
makes the F Series ideal to grow with your business and open up new markets at any given time.
• High Frequency Router
• High Torque Rotary module
• Tangential module
• V-Cut tools, creasing tools,Heavy-Duty Cutout tool, etc.

The flatbed cutter is standard equipped with a range of convenient media handling features. Enjoy an automated workflow and ease-of-use:
• Twin Workflow
• Barcode Workflow
• Operator Zone
• Tandem Mode
• Poster Trim

Media Handling Add-on Available:
• Heavy-Duty Roll Support

Specifications

Specifications

Model: F-1832

Dimensions: 110 x 166 x 48 in.

Media WidthUp to 75 in.

Working Area: 72 x 126 in.

Vacuum: 2 x 2.2 kW (50Hz) / 2 x 2.55 kW (60Hz)

Vacuum Zones: 8 zones (2 rows x 4 columns)

Requirements: 3 phase 208v + N + G

Speed: up to 39 ips

Acceleration: Up to 1G

Standard Solution Includes:

• F Series Flatbed System
• Conveyor System with Pneumatic Media Clamps and Roll Support
• Safety Pack
• Camera System
• Axis Control Software
• Drag Module
• ADC Left & Right
• GoProduce software
