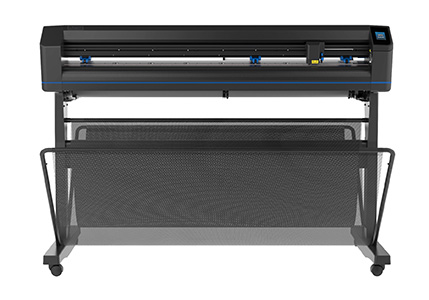

Summa S1 Series D120 48" Drag Knife Vinyl Cutter

GM-SUM-S1D120

Ea. (1)


The S1 D120 is the ideal intermediate size for many cutting jobs. All S One models were designed from the base with the user in mind. They represent the ideal cutting solution for sign makers who want to automate and level up their cutting workflow. The S One series is your first choice where value and reliability are top of mind.

• Advanced cutting technology
• Legendary tracking performance
• Summa GoSign software
POA

Description

Description

Summa S One vinyl cutters are designed with premium up-to-date components for long durability. On top of this,
all models include a combination of integrated or optional media add-ons, to facilitate the operator's life.

• Stand included
• Basket included

The S One cutter is standard equipped with a range of convenient features, adding to the production
efficiency and guaranteeing a perfectly cut product without hassle.

Enjoy an automated workflow and ease-of-use:

• Drag knife technology
• Coloured touchscreen
• Up to 600 gr of knife pressure
• Cutting accuracy with OPOS Xtra alignment
• Automation with the barcode workflow
• Up to 8 m/26 ft tracking guaranteed
• FlexCut (cutting through)
• Connectivity: USB, Ethernet & WiFi (region dependent)
• Summa GoSign software

Specifications

Specifications

Model: S1 D120

Dimensions:  63.6 x 27.7 x 43.8 in

Media Width:  5.3 to 53.1 in

Max. Working width | Oversized mode*: 48.6 in x 164 ft | 51 in x 164 ft

Speed: Up to 44 ips diagonal

Acceleration: Up to 3 G diagonal

Knife Pressure: 0 to 600 gr

Other Features: FlexCut (cutting through)

Connectivity: Ethernet, USB, WiFi (region dependent)

Power Requirements: 100-240 VAC, 50/60 Hz

Included software: Summa GoSign Software, Summa Cutter Control

Alignment Type:

  • OPOS X - OPOS Xtra
  • Barcode job recognition
  • Up to 2 x 64 marks on the X-line
  • Y-Line compensation



Tracking Performance:

  • 26 ft max. within guaranteed specifications for media less than 30 in.
  • 13 ft. max within guaranteed specifications for media larger than 30 in.



*In 'Oversized' mode the tracking performance is no longer guaranteed.
