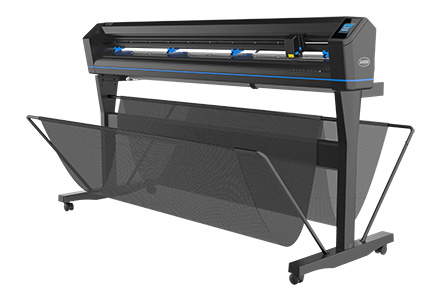

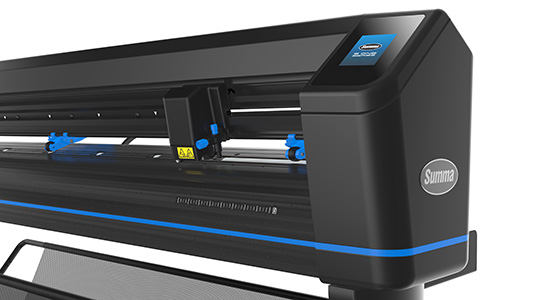

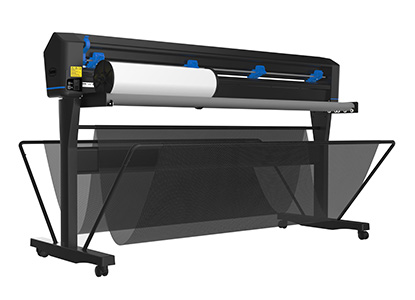

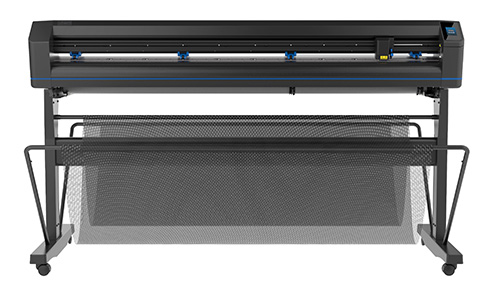

Summa S1 Series D160 64" Drag Knife Vinyl Cutter

GM-SUM-S1D160

Ea. (1)


The S1 D160 is Summa's largest roll cutter size, offering great flexibility in the cutting workflow with the ability to process many job sizes. All S One models represent the ideal cutting solution for sign makers who want to automate and level up their cutting workflow. The S One series is your first choice where value and reliability are top of mind.

• Drag cutting technology
• Legendary tracking performance
• Summa GoSign software
POA

Description

Description

Summa S One vinyl cutters are designed with premium up-to-date components for long durability. On top of this,
all models include a combination of integrated or optional media add-ons, to facilitate the operator's life.
• Stand included
• Basket included

The S One cutter is standard equipped with a range of convenient features, adding to the production
efficiency and guaranteeing a perfectly cut product without hassle.

Enjoy an automated workflow and ease-of-use:

• Drag knife technology
• Coloured touchscreen
• Up to 600 gr of knife pressure
• Cutting accuracy with OPOS Xtra alignment
• Automation with the barcode workflow
• Up to 8 m/26 ft tracking guaranteed
• FlexCut (cutting through)
• Connectivity: USB, Ethernet & WiFi (region dependent)
• Summa GoSign software

Specifications

Specifications

Model: S1 D160

Dimensions:  77.2 x 27.7 x 43.8 in

Media Width:  7.4 to 66.5 in

Max. Working width | Oversized mode*: 62.2 in x 164 ft | 64.6 in x 164 ft

Speed: Up to 44 ips diagonal

Acceleration: Up to 3 G diagonal

Knife Pressure: 0 to 600 gr

Other Features: FlexCut (cutting through)

Connectivity: Ethernet, USB, WiFi (region dependent)

Power Requirements: 100-240 VAC, 50/60 Hz

Included software: Summa GoSign Software, Summa Cutter Control

Alignment Type:

  • OPOS X - OPOS Xtra
  • Barcode job recognition
  • Up to 2 x 64 marks on the X-line
  • Y-Line compensation



Tracking Performance:

  • 26 ft max. within guaranteed specifications for media less than 30 in.
  • 13 ft. max within guaranteed specifications for media larger than 30 in.



*In 'Oversized' mode the tracking performance is no longer guaranteed.
