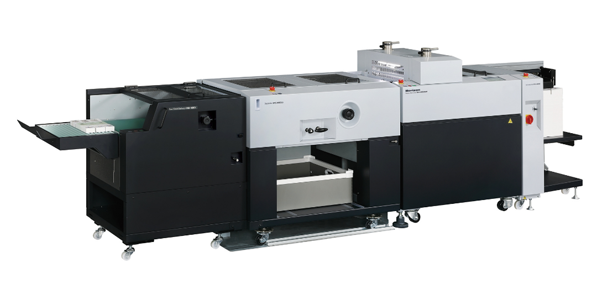

As part of Standard Horizon’s popular RD series of die cutters, the RD-N4055 system can die cut, kiss-cut, emboss/deboss, crease/score, perforate, slit, hole punch, and round corner in a single pass or in multiple combinations for a wide range of applications including business cards, invitations, labels, door hangers, light packaging, and more. With the addition of the SPC-N4055 separator and optional CSD-40RD card stacker, this new system also eliminates the need for manual separating and counting at the delivery section to allow operators to work more efficiently, improve accuracy with an automated, verified piece count, and increase production efficiency for small and short-run pieces.

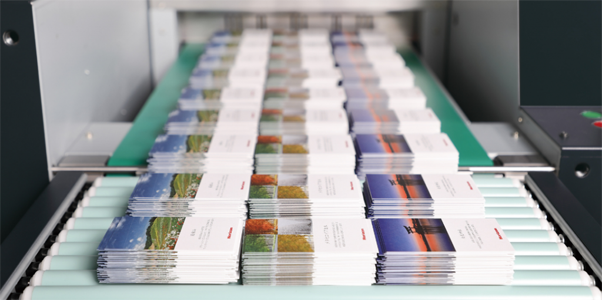

- Stacked output: Small-format product is pile stacked – in 1-up or in multiple stack output – and transported by belt for offloading at the delivery section, eliminating time-consuming manual separation, counting, and stacking.
- New separator: The SPC-N4055 separator contains 20 transport belts (up from 12), each with a smaller diameter than previous generations, for more accurate separation, more stable operation, and smoother transportation.

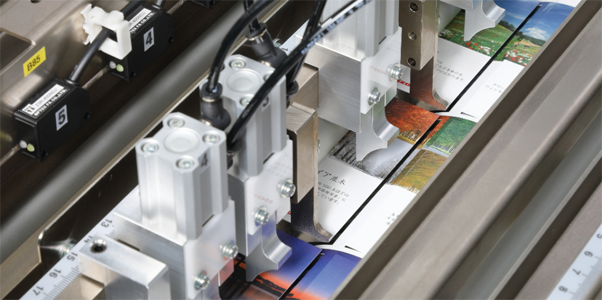

- Individual stack counter: A sensor on each delivery path counts individual pieces to eliminate human error in counting and to improve accuracy. The system flags and displays any undercounts on the system’s touchscreen monitor so that operators can catch errors quickly.
- Higher productivity: The RD-N4055 system can increase productivity by 20% compared to the previous model. For example, using a max sheet size of 21.65” x 15.74” and long-edge imposition (4×9), the system can support 36-up business card applications, reducing the required number of parent sheets from 9 to only 7 with easy separation and stacking. In addition, a new minimum sheet spec of 3.15” x 1.969” enables more efficient production of small pieces.
- Suction belt transport: The suction belt provides stable transport of individual pieces post separation. Single piece delivery is much more efficient than stream delivery for transporting and stacking small pieces. Its base settings cover all types of stocks, but the vacuum draw down can also be adjusted depending upon stock and piece size.
