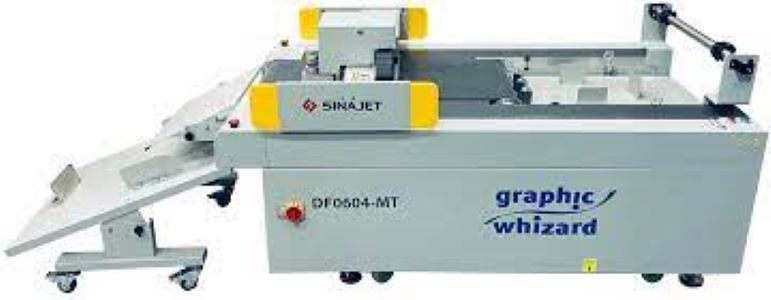

SinaJet DF0604 Digital Die Cutter

GM-GWH-D0604MT

Ea. (1)

Designed for the "on-demand" creation of folders, rounded business cards, greeting cards, self0adhesive labels, counter displays and customized boxes in any shape and style. The only one in the market with automatic plotters with Interchangeable Tools for prototyping and small production.

• Cutting speed: 40" per second
• Minimum sheet size: 8"x12"
• Maximum cutting area: 23.6" x 15.75"
• Feeder pile capacity: 7"
• Cutting, kiss-cutting, creasing and perforation
• Control Center Software provided with Sinajet

POA

Description

Description

Kiss cut, rotary cut, pen, crease, perf

Designed for the “on-demand” creation of folders, rounded business cards, greeting cards, self-adhesive labels, counter displays, cases, boxes customized in shape and style. All this in a simple, fast, and precise machine without waiting to create expensive and elaborate dies. Jobs will be processed effortlessly thanks to the 600 x 400 job format which is automatically loaded by the high pile feeder.

The Graphic Whizard digital flatbed cutter is the only one in the market of automatic plotters with Interchangeable Tools for specific and professional processes to handle not only prototyping, but also for small production. Capable of handling plasticized prints (up to 10mm with oscillating cut with the MT model) sheets are automatically managed allowing for unparalleled operator freedom. Interchangeable tools allow for cutting, kiss-cutting, creasing and perforation.

  • 1000mm per second
  • 208-240V, 50/60Hz, 30 A single phase
  • Minimum sheet size: 210 mm x 297 mm / 8″x12″
  • Maximum sheet size: 680 mm x 420 mm / 26.8″ x 16.5″
  • Maximum cutting area: 600 mm x 400 mm / 23.6″x15.75″
  • Up to 1.8mm
  • 7″ pile height with suction adjustment
  • Roll feed option for vinyl or labels
  • Interchangeable tools for a variety of custom applications
  • Built-in compressor
  • Barcode and 4 corner registration mark reading

Specifications

Specifications

Pwr Requirement 208-240V, 50/60Hz, 30 A single phase
Feeder pile height capacity 180 mm / 7″
Max. Sheet Size (Auto feed) 680 mm x 420 mm / 26.8″ x 16.5″
Max. Cutting Area 600 mm x 400 mm / 23.6″x15.75″
Max. Cutting Speed 1,000 mm/second
Cutting Thickness Up to 1.8 mm
Recommended cutting material Cardstock, Paper, Labels

Number of tool locations 3
Standard tools included Dual RCT (Rotary Cutting Tool)
  RST (Rotary Scoring Tool)
  Interchange RTC with Ballpoint Pen
  or Crease Pen

EOT Electronic Oscillating Tool No
ACT Active Circular Tool (Fabric) No
Roll feed option Yes
Infrared anti-collision device No
Compressor required Yes, built in
Cutting and Camera Software Sinajet Control Center
QR Code Reader Yes
Barcode Reader Yes
CCD Camera Positioning Yes
Cutting Tolerance +/- 0.1mm
Min. Paper Weight 80 gsm/70 lb. text
Dimensions 3123 (L) x 1090 (W) x 1170(H) mm
  123″ (L) x 43″ (W) x 46 “(H)
Machine weight 450 kg / 990 lbs
