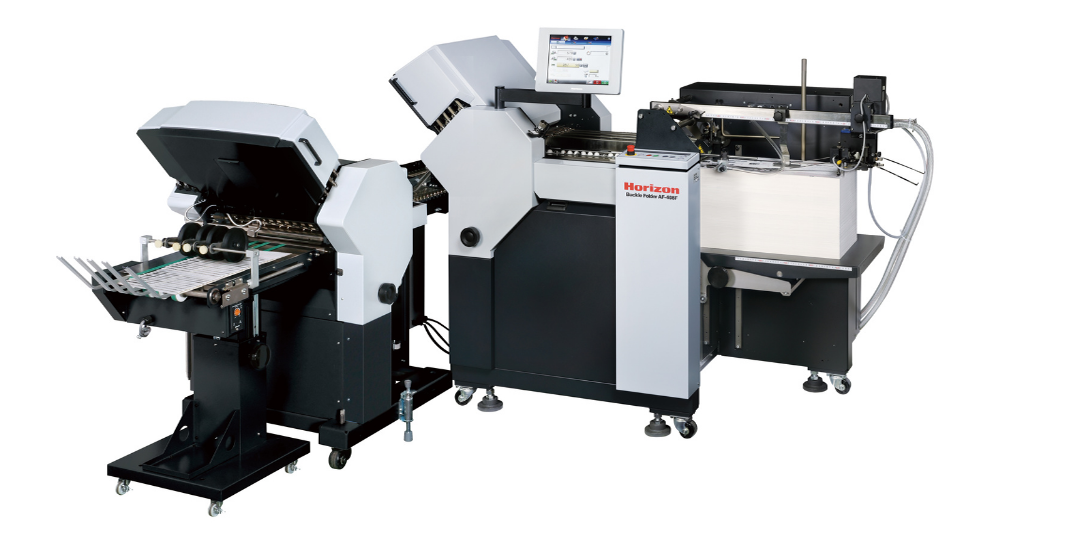

Horizon AF-408/TV-406F Small-Format Folder

GM-HOR-AF408_TV406F

Ea. (1)


The AF-408/TV-406F small-format folder is a fully automated, 8-buckle folder with an operator-friendly, automated setup that can manage a wide range of simple or complex fold patterns, especially for the insert and pharmaceutical markets.

• Easy setup
• Various checking functions
• Application flexibility
POA

Description

Description

The AF-408/TV-406F small-format folder is a fully automated, 8-buckle folder with an operator-friendly, automated setup that can manage a wide range of simple or complex fold patterns, especially for the insert and pharmaceutical markets. The system can run at up to 590 fpm, and the suction head can run up to 30,000 cycles per hour.

  • Job storage: The system’s memory can store up to 200 fold patterns for quick and easy setup of simple and repeat jobs.
  • Easy setup: A new scoring navigator assists with the quick and accurate setup of scoring and perforation positions

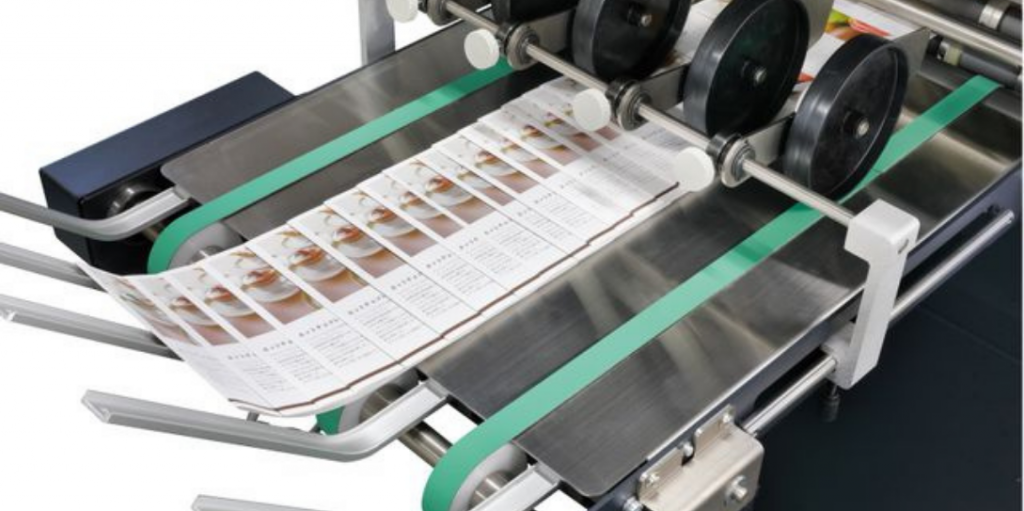

  • Full automation: Each section of the folder is set automatically via the improved color touchscreen controls, and separate feed and delivery counters provide accurate piece production for critical jobs like pharmaceutical inserts.

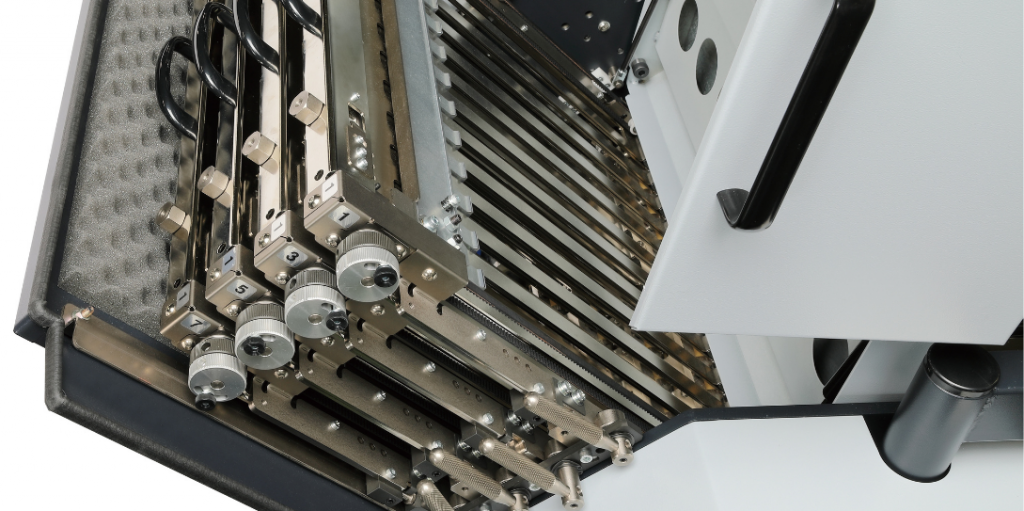

  • Application flexibility: Two fold plates in the initial folding section expand the number of folds that can be performed prior to cross-folding or when running the TV-406F right angle section in parallel.

Specifications

Specifications

Sheet Size Max: 16.92″ x 25.98″
Min: 1.97″ x 3.94″
Sheet Weight Range Coated: 73 to 157 gsm
Uncoated: 33 to 157 gsm
Belt Speed Up to 590 fpm
Production Speed Suction head 30,000 cycles/hour
