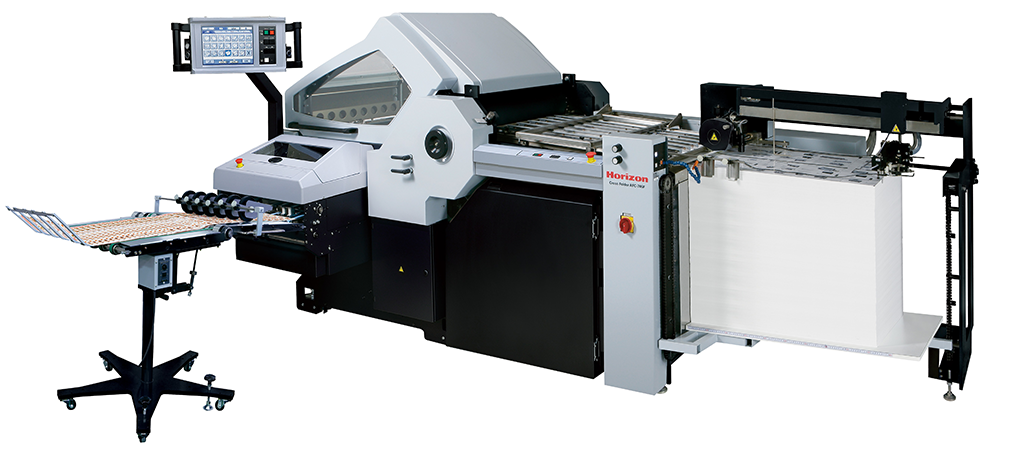

Horizon AFC-746F B1 Pallet-Feed Folder

GM-HOR-AFC746F_B1

Ea. (1)

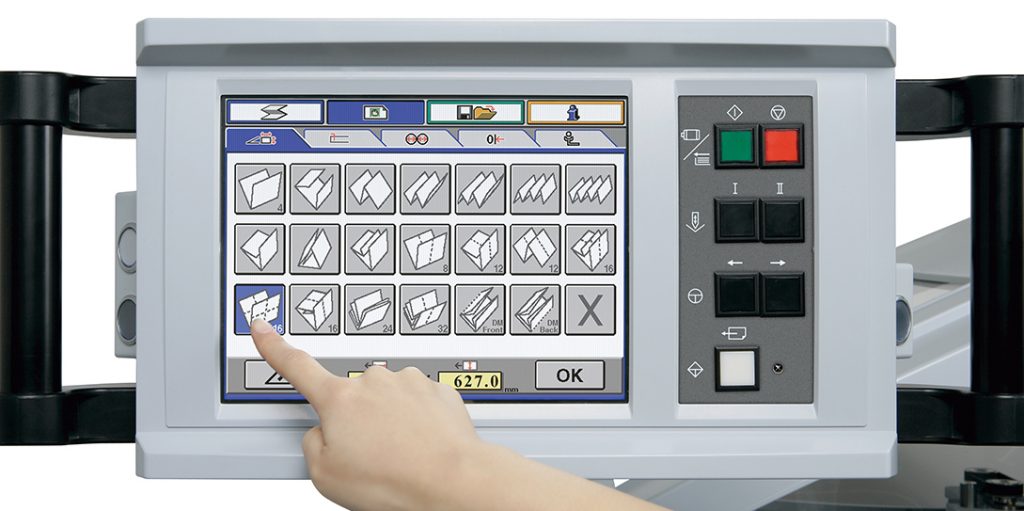

The Standard Horizon AFC-746F B1 Pallet-Feed Folder includes advanced set-up automation through a user-friendly color touch-screen control panel that displays all common fold formats and sheet sizes for easy selection.

• User-friendly
• Advanced automation
• Superior folding quality
POA

Description

Description

The Standard Horizon AFC-746F B1 Pallet-Feed Folder includes advanced set-up automation through a user-friendly color touch-screen control panel that displays all common fold formats and sheet sizes for easy selection.

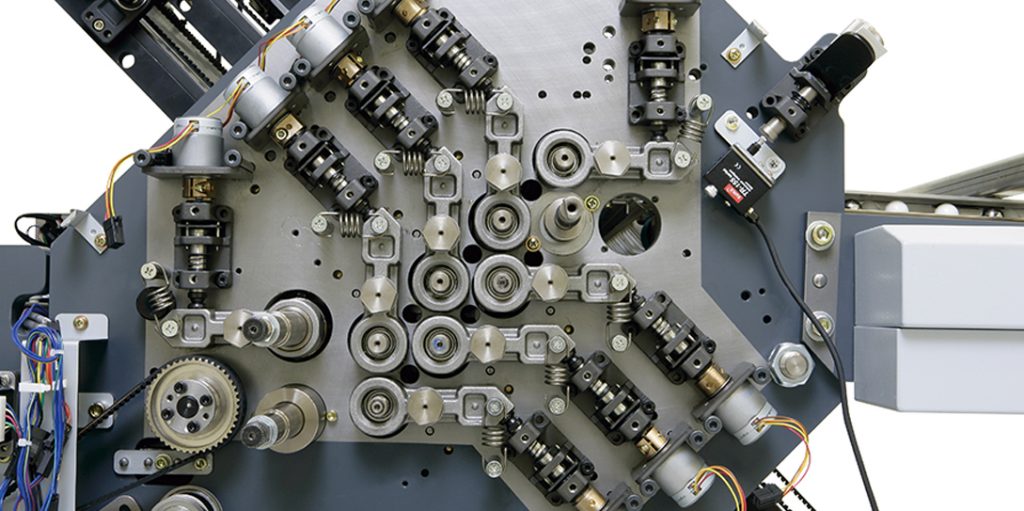

  • Fully automated adjustments: The folder features quick changeover and fully automated setup with up to 47 automated adjustments including in-feed, roller gap, buckle fold, and knife-fold sections.

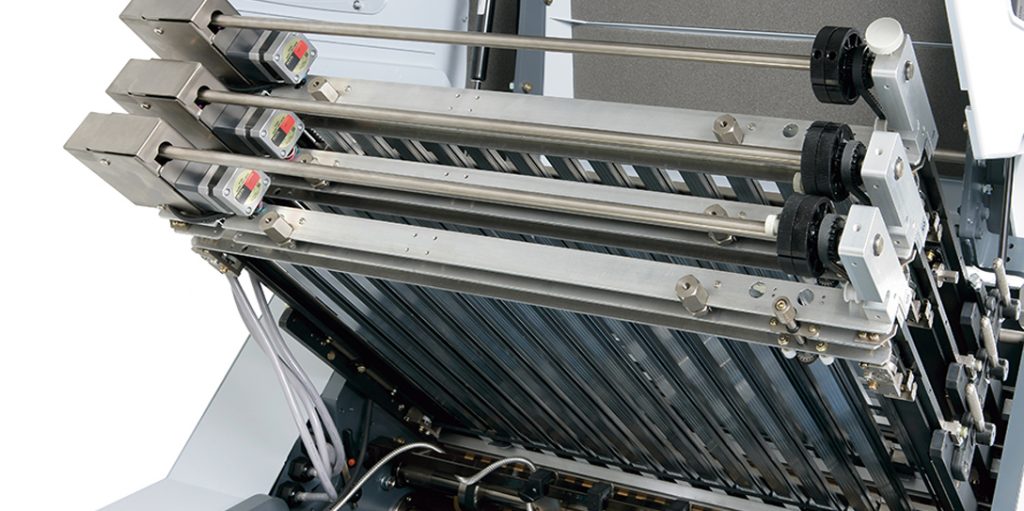

  • Unparalleled fold flexibility: The AFC-746F has 6 buckle plates and handles sheet sizes up to 29.1” x 43.3” and as small as 8.27” x 11.695”. The system also offers 20 pre-set fold patterns with a programmable memory for up to 200 different jobs.

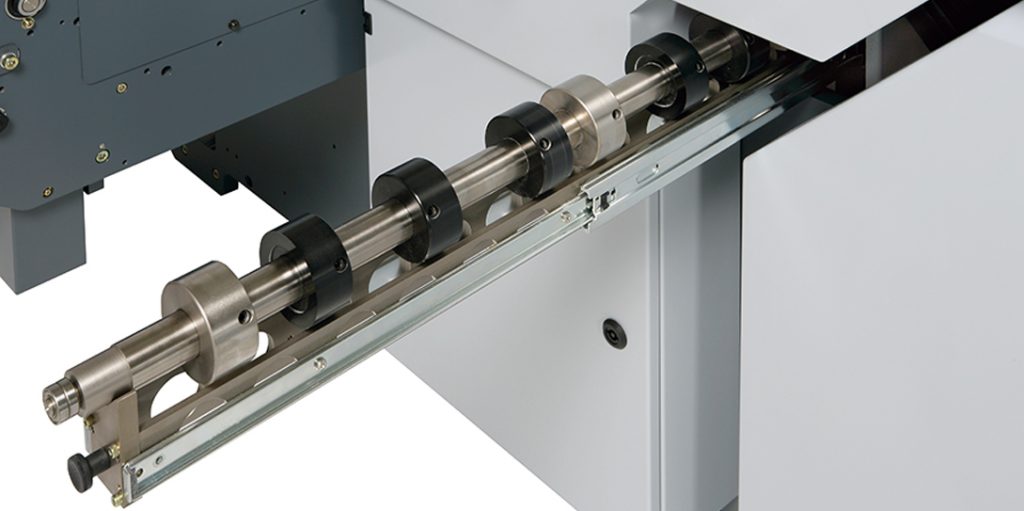

  • Improved slitter shaft removal: The AFC-746F includes a 47″ pallet pile feeder with suction head and a new, ergonomically friendly slitter shaft removal system which allows the operator to remove the perforation shaft automatically for easier blade setting.

Specifications

Specifications

Maximum Sheet Size 29.1″W x 43.3″L
Minimum Sheet Size 8.27″W x11.695″L
Stock Weight Range 35 to 209 gsm (uncoated paper)
Maximum Pile Height 47.2″ (pallet included)

Video

Video

Literature

Literature
