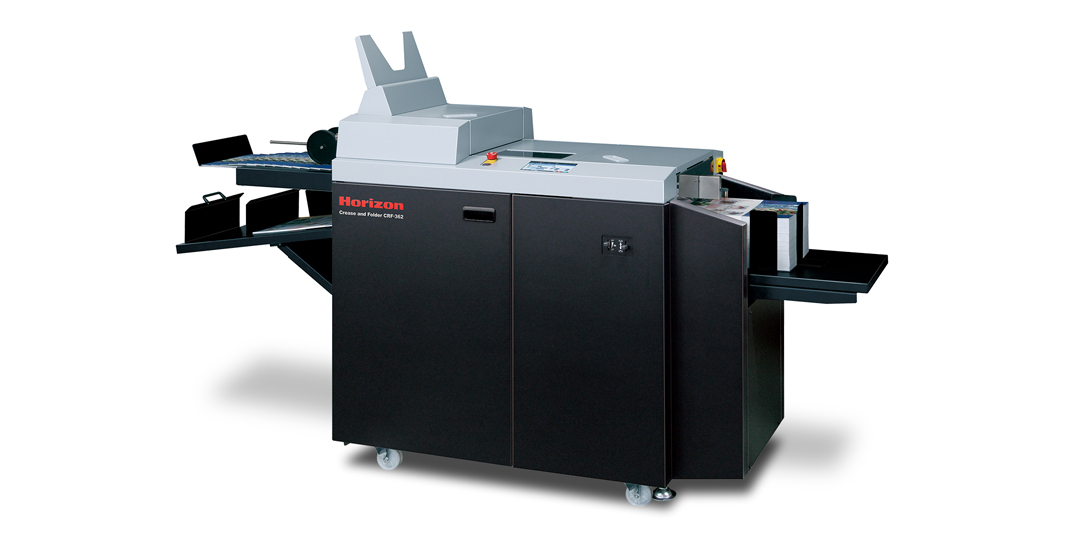

Horizon CRF-362 Creaser Folder

GM-HOR-CRF362

Item Availability (unit) Ea. (1)

The new Horizon CRF-362 Creaser/Folder has been designed to handle the unique requirements, creasing and folding can be done in one pass.

• Up to 200 jobs stored in memory for easy recall
• Paper weights up to 400 gsm
• Sheet sizes up to 14.33” x 34”
• Up to 5000 sheets/hr-one crease and fold

POA

Qty:

Description

The new Horizon CRF-362 Creaser/Folder has been designed to handle the unique requirements of creasing and folding digital color output across a wide range of light and heavy weight stocks, coated or uncoated. Creasing and folding can be done in one pass for easy and accurate processing of a variety of applications such as restaurant menus, greeting cards, book covers, and marketing collateral.

Pre-configured patterns: The CRF-362 comes configured with 7 selectable fold patterns and 6 selectable cover creasing patterns for perfect binding including spine, hinge, and flap creasing.
Eliminate image cracking: Capable of up to 10 crease lines on a sheet, the system uses an impact scoring technology that eliminates or minimizes cracking of the stock or printed image.
Add-in perforation: The CRF-362 can also easily handle perforations with the optional PRF-36 Perforation Unit

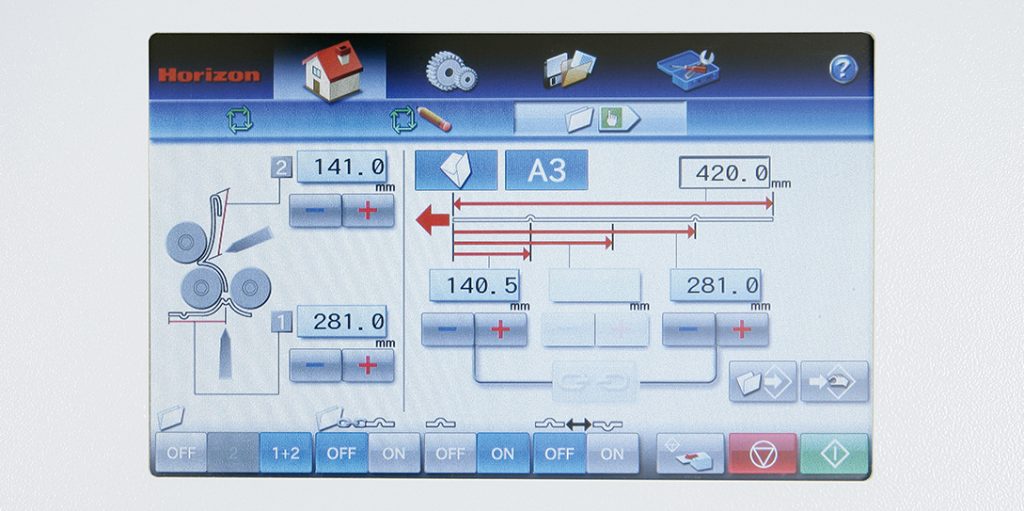

Easy setup and changeover: Set-up and changeovers – including fold pattern, creasing number, and up/down crease selection – can be easily achieved through the high resolution color touchscreen designed for simple and intuitive operation.
Broad paper range: The system can handle paper weights up to 400 gsm for creasing without folding (350 gsm with folding) and sheet sizes up to 14.33” x 34”.

Specifications

Sheet Size: 4.1 x 7" up to 14.3 x 34"
Stock Weights: 80 - 350 gsm or up to 400 gsm w/out fold
Folds & Creases: up to 2 folds and 10 creases per sheet
Production Speed: 5,000 sheets / hr. with 1 crease + 1 fold (A4)
Feeder: Air-Feed / top feed (5.9" capacity)
Knife Fold: 2 folds and 7 selectable fold patters
Impact Creasing: up and down blades (0.8mm) standard included
Impact Perforation: (Option #PRF-36) - entire width of the sheet
Rotary Perforation & Scoring (Lateral) - N/A
Electrical: Single phase 208V, 60Hz (only for US)
Machine Dimensions (LxWxH): 108.0 x 27.6 x 56.3". 760 lbs.
