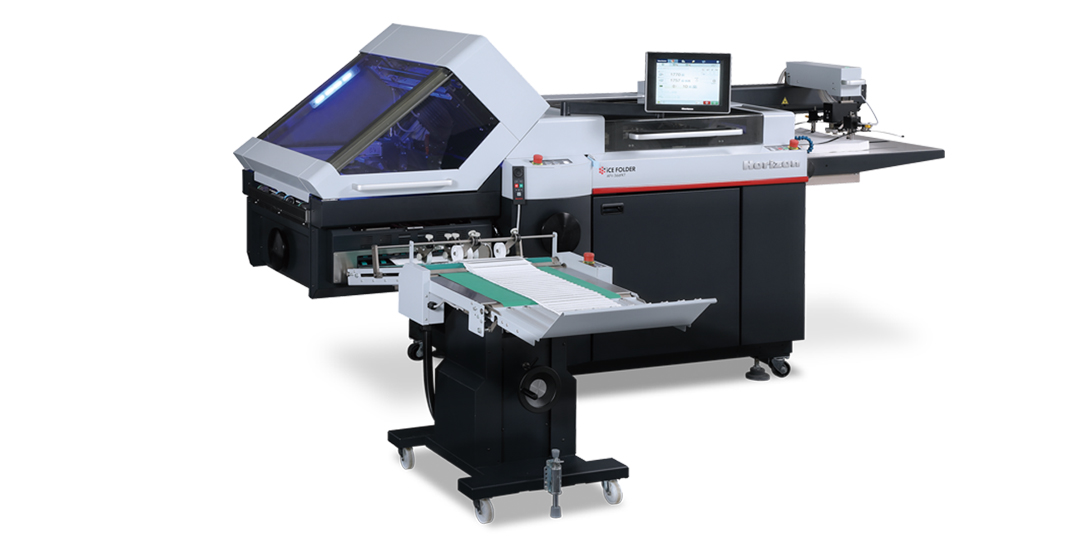

Horizon AFV-566FKT Folder

GM-HOR-AFV566FKT

Ea. (1)


The automated AFV-566FKT Folder is a 6-buckle folder with integrated knife/buckle cross-folding that contains 44 fully-automated settings for improved efficiency, more operator-friendly production, and reduced waste and make-ready.

• Easy setup
• Advanced automation
• Application flexibility
POA

Description

Description

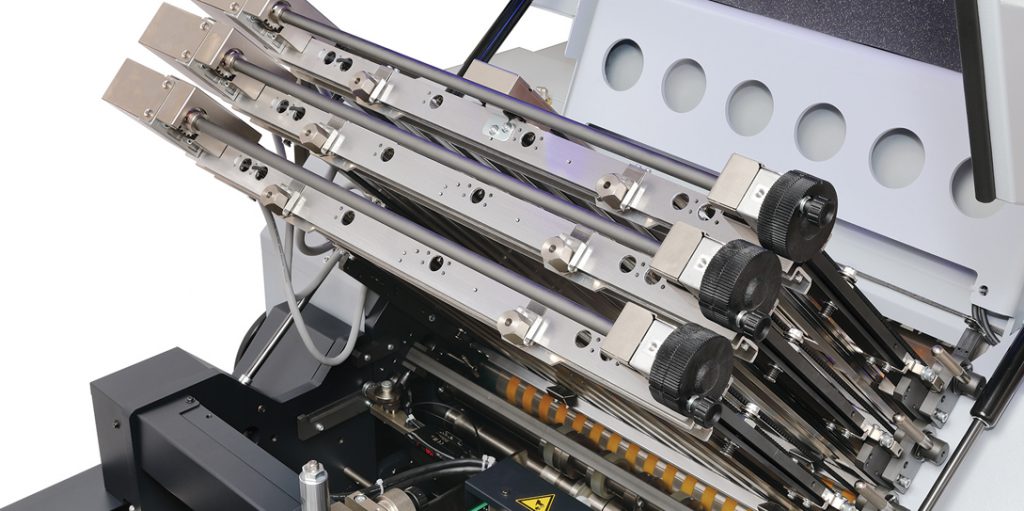

The automated AFV-566FKT Folder is a 6-buckle folder with integrated knife/buckle cross-folding that contains 44 fully-automated settings for improved efficiency, more operator-friendly production, and reduced waste and make-ready. Roller gaps and buckle plates can be easily fine-tuned from the improved touchscreen control panel, and automated stop adjustment under the knife and trailing edge roller adjustments reduce operator intervention and maximize machine uptime.

  • Fast setup: Setup and changeover times are nearly 20% faster than the previous generation of folder
  • System status indicators: The AFV-566FKT features customizable LED lights that alert operators to system status at a glance.

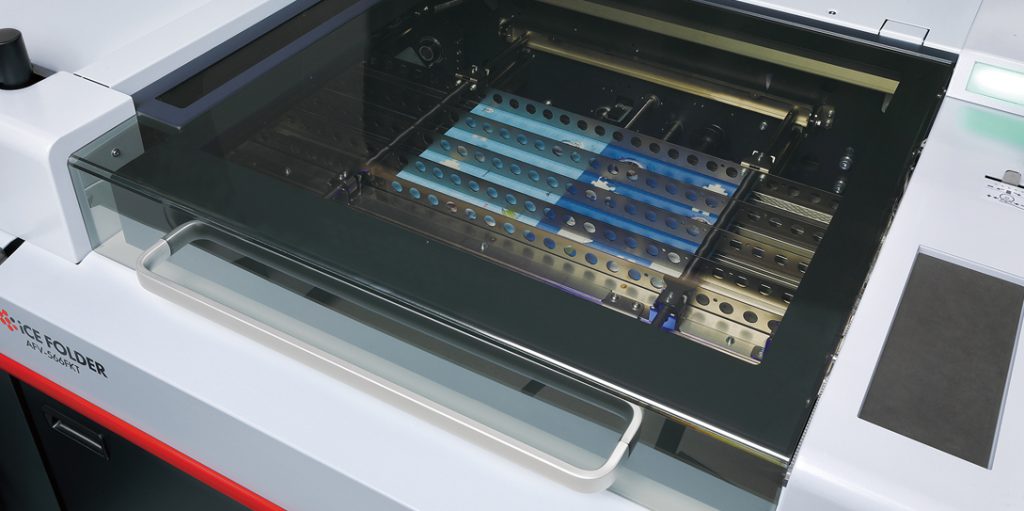

  • Reduced noise: Enhanced sound-proof covers are included over the fold plates and the registration table to reduce noise by 2 decibels compared to previous models.

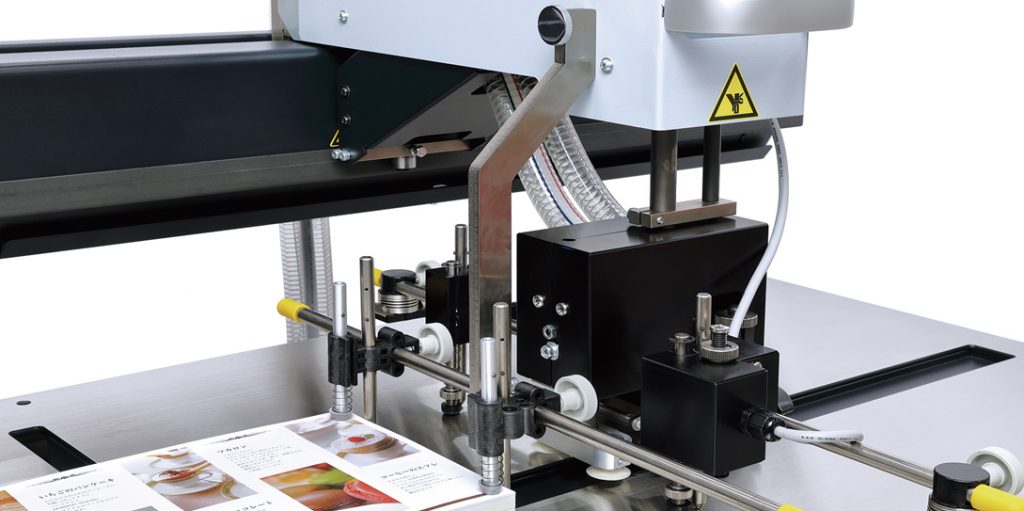

  • Improved feed section: The AFV-566FKT uses a single-piston suction head system for faster and more accurate operation.

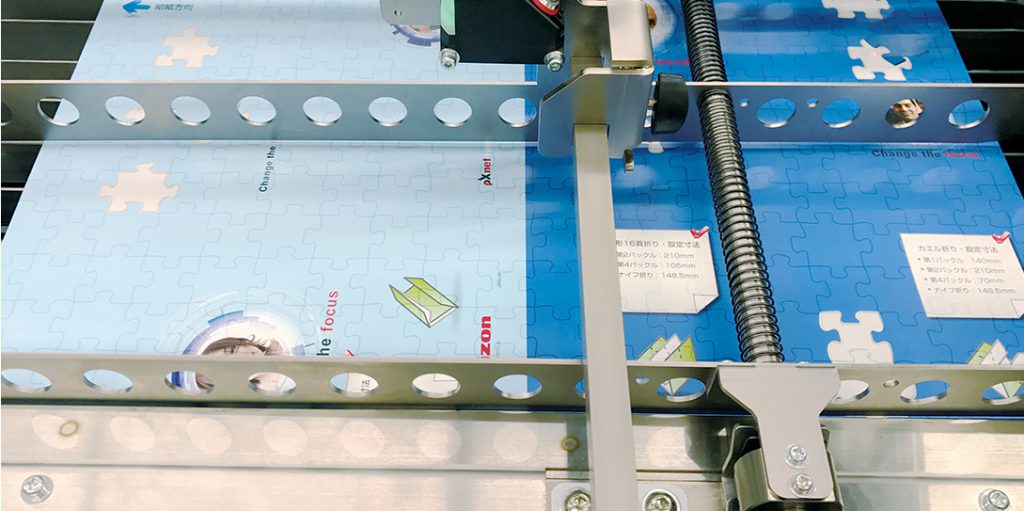

  • New registration: The system features an automated register table with an adjustable vacuum belt that eliminates steel and plastic drive pull-in for registration.
  • No trial-and-error: The AFV-566FKT can automatically calculate the optimal feed interval to ensure top production speeds and efficiency with no manual adjustments.
  • Production speeds: The system can reach speeds of up to 656 feet/min with cross-folding and up to 885 feet/min for parallel folds.

Specifications

Specifications

Maximum Sheet Size 29.1″W x 43.3″L
Minimum Sheet Size 8.27″W x11.695″L
Stock Weight Range 35 to 209 gsm (uncoated paper)
Maximum Pile Height 47.2″ (pallet included)
