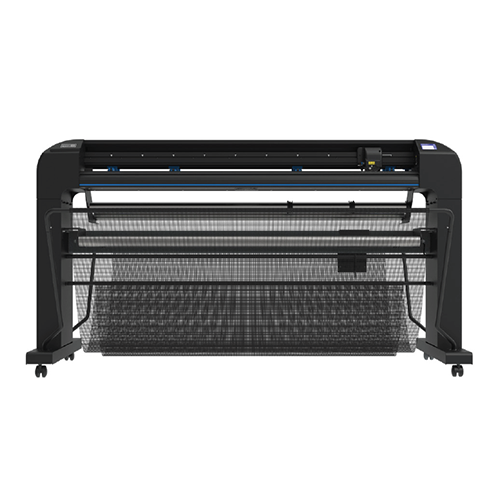

Summa S Class 3 T140 54" Vinyl Cutter

GM-SUM-S3T140

Ea. (1)


S Class 3 roll cutters feature first-class engineering and advanced cutting technology. The new S Class 3 series is crafted to cater to the needs of true professionals who demand nothing short of top-notch performance, pinpoint precision, and unparalleled versatility in their work.

• True tangential cutting technology
• Precision, speed, and ease of use
• Electronic controlled knife direction
• Up to 1000 grams cutting force
POA

Description

Description

This mid-size cutter in the S Class 3 Series enables a larger media width offering more versatility in the cutting applications. With unparalleled technology and reliability, this cutter delivers leading-edge performance and precision. Fast and straightforwardly.

The Summa S3 140 offers even more cutting versatility and endless creative possibilities. Tackle larger projects with ease as it effortlessly handles media up to 53.1in (+2.8in in oversized mode). Combining the barcode functionality with the best-inclass OPOS sensor lets you experience next-level productivity and precision. It ensures a faster and even more precise reading speed, increasing productivity while keeping the throughcut reliable. The roll cutter also contains the latest alignment methods and advanced cutting techniques to ensure flawless edges and precisioncut graphics. The cutter operates with seamless efficiency, elevating your productivity and streamlining your workflow. To streamline your workflow even more, you can opt for the roll-up unit, which rolls up your processed materials again instead of dropping them in the basket.

T SERIES - TANGENTIAL CUTTING HEAD
The Summa S Class 3 T Series combines S Class power and precision with a state-of-the-art True Tangential cutting head. The True Tangential cutting technology with the motor-controlled knife is unique to Summa and delivers extremely precise cutting results. Therefore, its cutting performance is legendary. The T Series cuts with more force and accuracy than any cutter in its class. Coupled with an astonishing array of innovations and built-in capabilities, this cutter offers you the best in roll cutting.

• Advanced cutting technology
• Ergonomic design
• User-friendly features
• Latest alignment method
• Legendary tracking performance
• Connectivity options
• Summa GoSign software
• Tangential or Drag knife technology
• Indicator light
• Advanced throughcut functionality
• Camera or Sensor recognition of registration marks
• Barcode functionality for automation
• Twin X functionality

Specifications

Specifications

Model: S3 T140
Dimensions: 79.6 (W) x 27.2 (D) x 43.7 (H) in.
Media Width: 6.7 to 57 in
Max Working Width: 53.1 in x 164 ft
Tracking Performance: 40 ft max within guaranteed specs for media less than 30 in wide/13 ft for media larger than 30 in wide
Media Thickness: 0.002 in to 0.047 in
Accuracy: 0.2% of movement or 0.010 in, greater of
Speed: Up to 56 ips diagonal
Acceleration: Up to 4.25 G diagonal
Knife Pressure: Up to 1000 grams
Extra Pen or Creaser Pressure: Up to 1000 grams
Other Features: FlexCut (cutting through)
Connectivity: Ethernet, USB, WIFI
Power Requirements: 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
Included Software: Summa GoSign Software, Summa Cutter Control / Plug-in:
Illustrator, CorelDraw, MacSign
Cutting Technology: Tangential knife

Alignment Type:
OPOS X - OPOS Xtra, barcode job recognition, up to 2 x 64 marks on X-line, Y-line comparison
