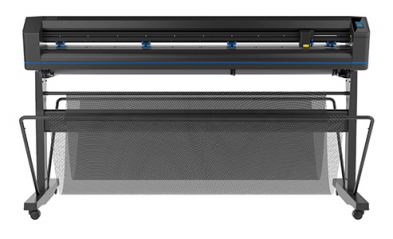

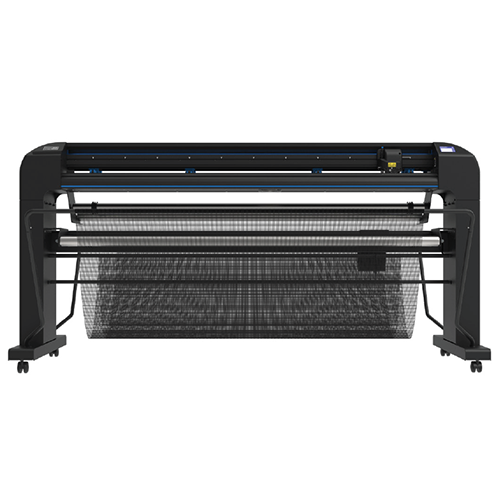

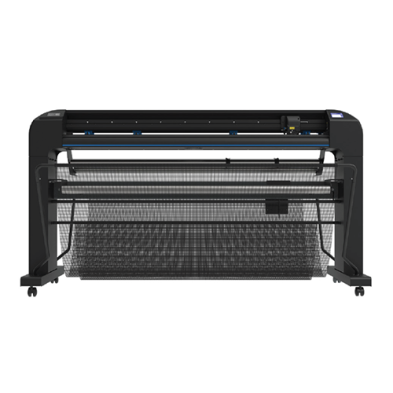

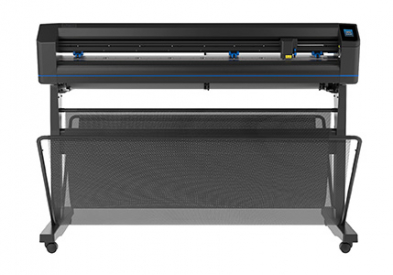

Summa S Class 3 T160 64" Vinyl Cutter

The largest roll cutter size in the S Class 3 Series is tailored to the professional user who wants maximum flexibility in the possible applications and desires the most advanced technology and features. Rely on leading-edge cutting performance and cutting excellence with the S Class 3.

The S3 160 is perfect for professionals that want maximum versatility and productivity. With the capability to handle media up to 62.2in (+2.8in in oversized mode), it’s ideal for large-format projects. Equipped with advanced cutting technology and either a drag or tangential knife, it allows for more control and pressure, ensuring precision and efficiency in every cut. Unlock the power of full automation with the Summa S3 160. By simply placing a printer in front of the roll cutter, you can achieve seamless transitions from printing to cutting without any intervention. Moreover, by opting for the roll-up unit, you can neatly roll up the processed material instead of letting it fall into the basket. Need even more cutting power? The Twin X functionality offers the ultimate solution by seamlessly integrating the Summa S3 160 with the F1612 flatbed cutter. This dynamic duo will optimize your workflow efficiency and elevate your business to unparalleled heights.

T SERIES - TANGENTIAL CUTTING HEAD
The Summa S Class 3 T Series combines S Class power and precision with a state-of-the-art True Tangential cutting head. The True Tangential cutting technology with the motor-controlled knife is unique to Summa and delivers extremely precise cutting results. Therefore, its cutting performance is legendary. The T Series cuts with more force and accuracy than any cutter in its class. Coupled with an astonishing array of innovations and built-in capabilities, this cutter offers you the best in roll cutting.

• Connectivity options
• Summa GoSign software
• Combining Cut & Crease and OPOS (TC)
• Tangential or Drag knife technology
• Indicator light
• Advanced throughcut functionality
• Camera or Sensor recognition of registration marks
• Barcode functionality for automation
• Twin X functionality
• Roll-up system

Model: S3 T160
Dimensions: 88.6 (W) x 27.2 (D) x 43.7 (H) in.
Media Width: 6.7 to 66.1 in
Max Working Width: 62.2 in x 164 ft
Tracking Performance: 40 ft max within guaranteed specs for media less than 30 in wide/13 ft for media larger than 30 in wide
Media Thickness: 0.002 in to 0.047 in
Accuracy: 0.2% of movement or 0.010 in, greater of
Speed: Up to 56 ips diagonal
Acceleration: Up to 4.25 G diagonal
Knife Pressure: Up to 1000 grams
Extra Pen or Creaser Pressure: Up to 1000 grams
Other Features: FlexCut (cutting through)
Connectivity: Ethernet, USB, WIFI
Power Requirements: 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
Included Software: Summa GoSign Software, Summa Cutter Control / Plug-in:
Illustrator, CorelDraw, MacSign
Cutting Technology: Tangential knife

Alignment Type:
OPOS X - OPOS Xtra, barcode job recognition, up to 2 x 64 marks on X-line, Y-line comparison
